PECK 6150 SERIES CNC LATHE

WEST GOSFORD, NSW

PECK 6150 SERIES CNC LATHE :      $31,750 AUD ($34,925 Inc. GST)

  • Specifications
    Condition:
    New
    Type of Sale:
    Hot deals
    Year:
    2019
    Make:
    Panther
    Model:
    PECK6150
    Lathe Features:
    Turret tool mount
    Description

    1 set Panther PECAK CNC Lathe 6150x750
    with GSK980TC/ Siemens808D Basic Controller

    Specifications PECK6150
    Max .Swing over bed: 500mm
    Max. Work piece Length: 1000/1500/2000/3000mm
    Spindle taper: MT6 (90 1:20)

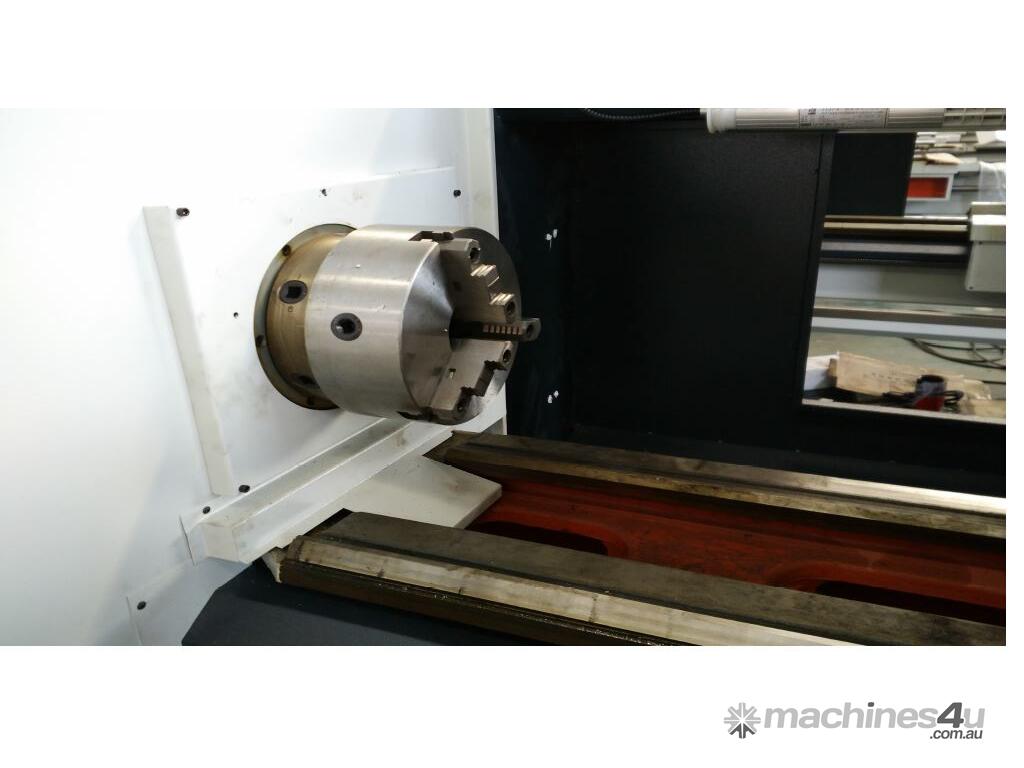

    Chuck size C6: (D8)
    Thru-hole of spindle: A-52mm / B-80mm
    Spindle speeds (12steps): 21-1500rpm(I 162-1500 II 66-660 III 21-210)
    Tailstock center sleeve travel: 150mm
    Tailstock center sleeve taper: MT5
    Repeatability error: 0.01mm
    X/Z rapid traverse: 3/6m/min
    Spindle motor: 7.5kw

    1 YEAR WARRANTY!

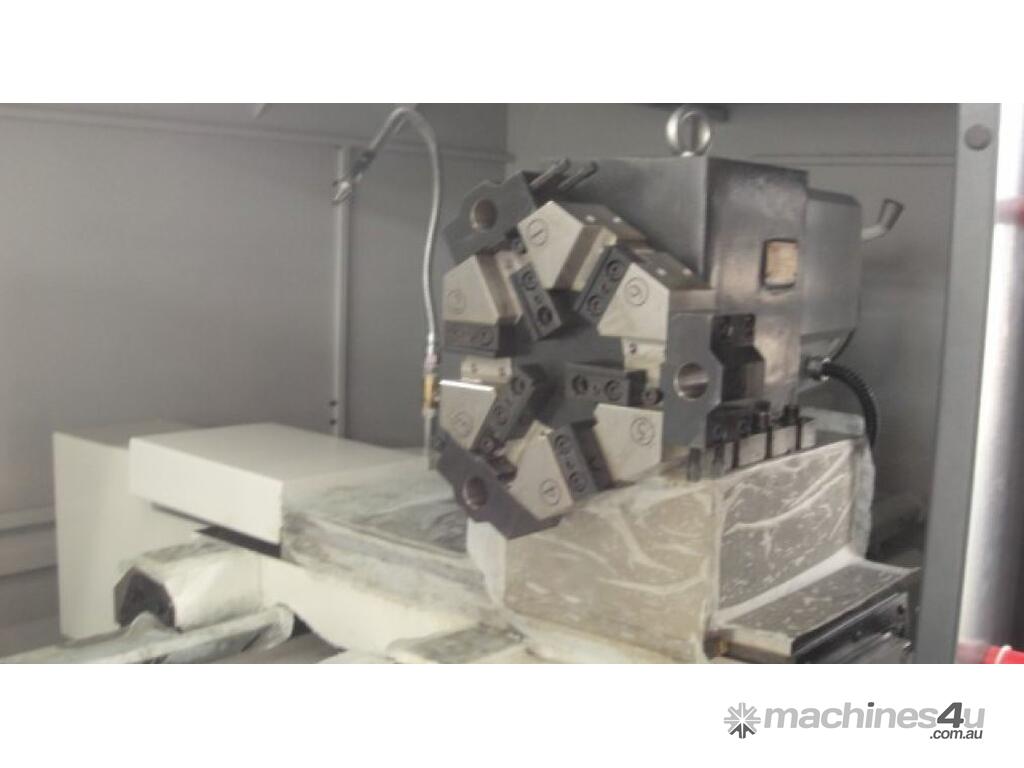

    Options: 6-Station NC Turret, Hydraulic Chuck (solid or hollow), Hydraulic Tailstock, 3-step Speed Change (manual or auto).


    CNC System Options:
    (can be mounted left or right hand side)
    -SIEMENS (Germany)
    -FANUC Oi-Mate TD (Japan)



    NOTE: The distance between centers can be modified according to customer's preference
