PECAK 6180A SERIES CNC LATHE

WEST GOSFORD, NSW

PECAK 6180A SERIES CNC LATHE :      $35,350 AUD ($38,885 Inc. GST)

  • Specifications
    Condition:
    New
    Type of Sale:
    In Stock
    Year:
    2018
    Make:
    Panther
    Model:
    PECAK6180
    Lathe Features:
    Turret tool mount
    Description

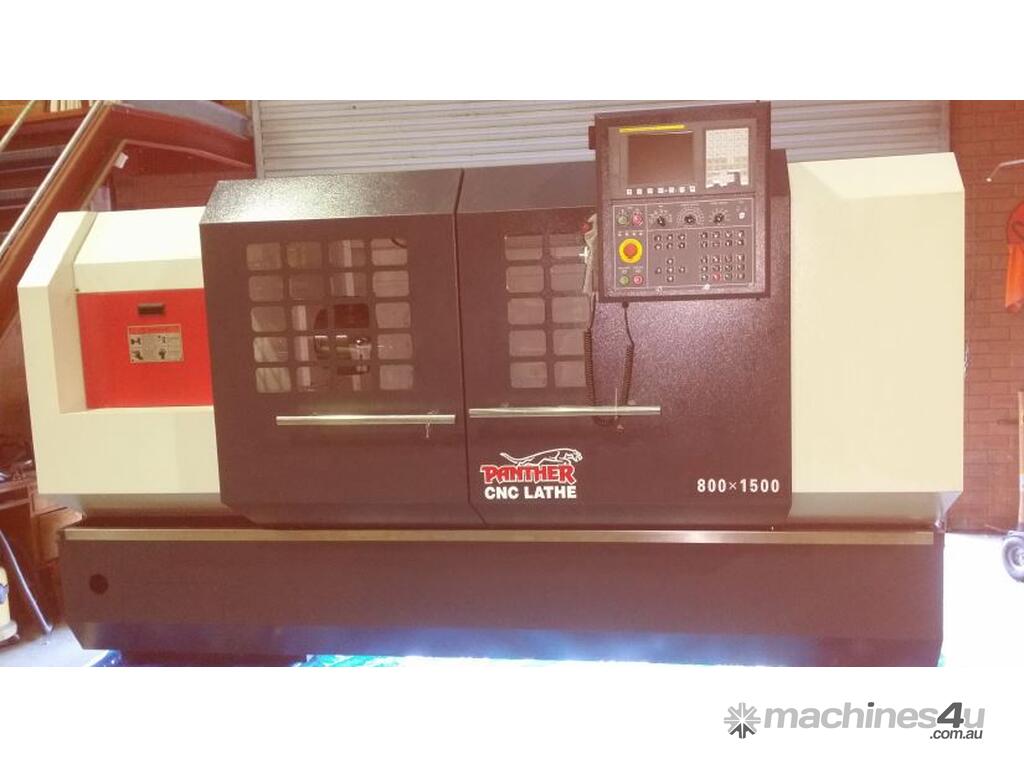

    1 set Panther CNC Lathe PECAK6180Ax750,
    52mm spindle bore with GSK980TDc/Siemens808D Basic


    Specifications: PECAK 6180A
    Max .Swing over bed: 800mm
    Max. Work piece Length: 1000/1500/2000/3000mm
    Spindle taper: MT6(90 1:20)

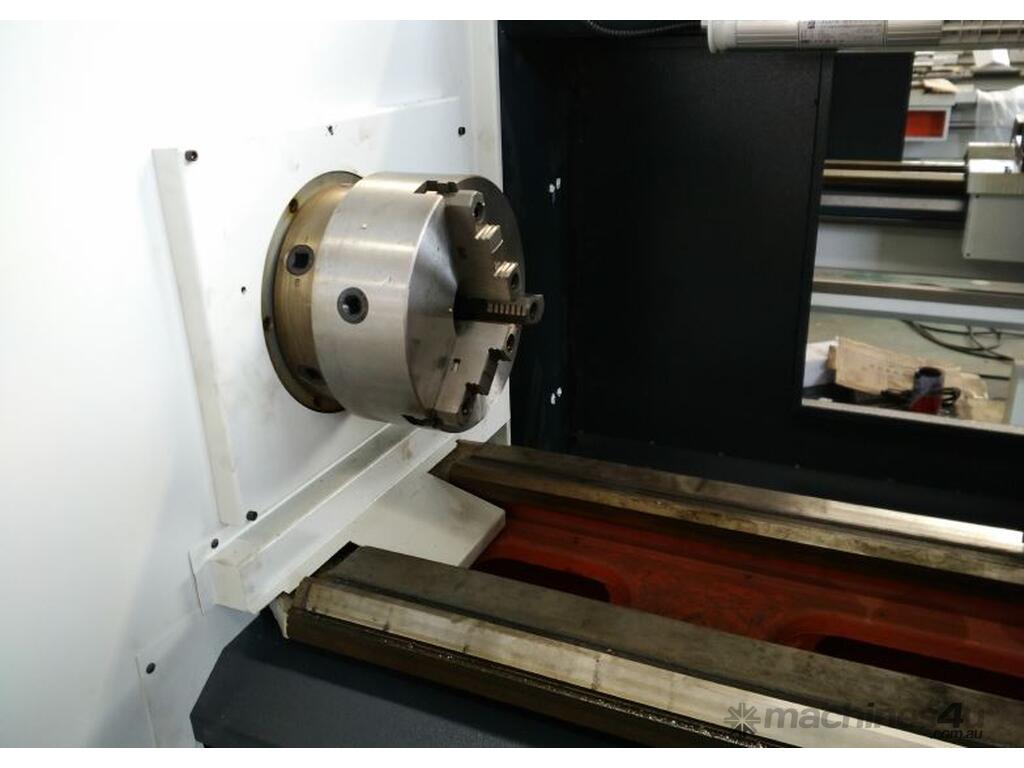

    Chuck size: C6 (D8)
    Thru-hole of spindle: A-52mm / B-80mm / C-105mm
    Spindle speeds (12steps): 21-1620rpm(I 162-1620 II 66-660 III 21-210)
    Tailstock center sleeve travel: 150mm
    Tailstock center sleeve taper: MT5
    Repeatability error: 0.01mm
    X/Z rapid traverse: 4/6m/min
    Spindle motor: 7.5kw

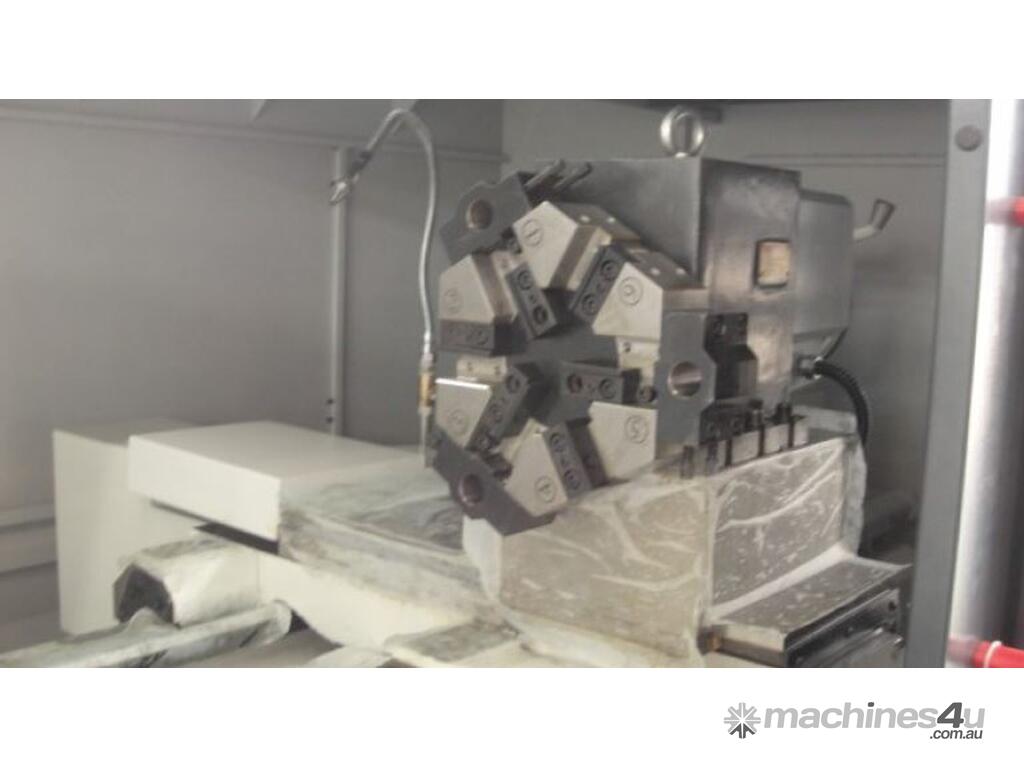

    Options: 6-Station NC Turret, Hydraulic Chuck (solid or hollow), Hydraulic Tailstock, 3-step Speed Change (manual or auto).


    CNC System Options / Standard Accessories:
    - GSK 980TA1 / KND100Ti-D (China) Frequency Spindle
    - SIEMENS (Germany) Manual Chuck
    - FANUC Oi-Mate TD (Japan) 4-Station NC Turret
    - Full-splash Guard
    - Steeples speed change
