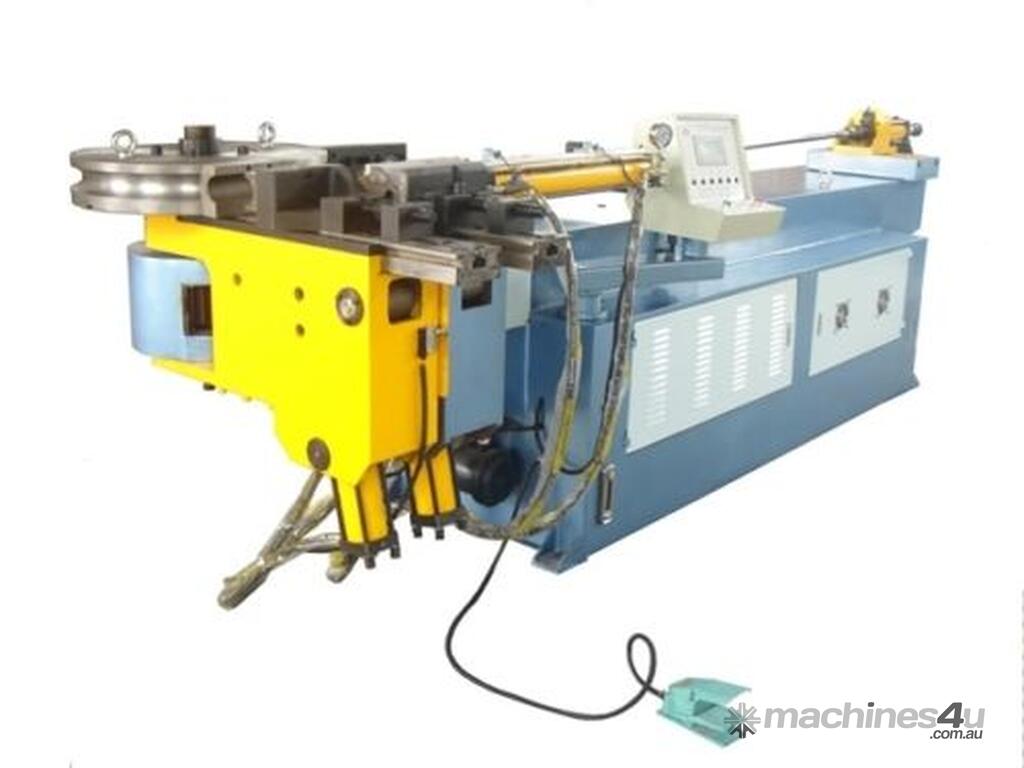

Mandrel Tube Bender Panther PE-38 NC
Mandrel Tube Bender Panther PE-38 NC : $14,600 AUD ($16,060 Inc. GST)
NC Control Series Hydraulic Pipe Bending Machine with Large program Capacity Storage.
NC type machines all use NC panel PLC screen control
Manual, semi-automatic and full automatic are available.
Multiple protective devices secure the safety of users.
Auto detective and error movement indicating functions prevent machine to be damaged by wrong operating.
Mobile pedal switch and side emergency stop switch more protection.
The cooling system makes machine running steady.
the quick tooling change system is favor of production.
High-rigid mechanism enable to reduce the interference area.
The panel displays the movement situation of the machine and bending angle.
Programmable auto detective and breakdown message display, show the wrong and error information in the screen.
The circuit signal lines uses modularized plugs, easy to replace and repair.
Build-in battery enables to keep inside data for 3 years memory after turned off machine.
Code protection function guard the process data.
Hydraulic System Control: Electromagnetic Valves.
Specification / Capacity Data:
Max. Round Pipe M/S: 38.1x2.0 mm O. Diameter
Max. Round Pipe Stainless steel: 38.1x1.8 mm O. Diameter
Max. Square (R.H.S.) M/S: 30x30x2.0 mm
Max. Round Bar M/S: 20 mm Diameter
Bending Radius: 15-260 mm
Bending Angle: 0-190 Degrees
Mandrel working distance: 1700 mm
Max. Bending degrees: 80 p / second
Bending Precision: +/- 0.15 Degrees
Hydraulic Motor: 4.0 KW
Max. Pressure: 12 Mpa
Hydraulic Tank Capacity: 110 Liter
Total Width: 750 mm
Total Height: 1100 mm
Total Length: 2600 mm
Total Weight: 850 Kg
Length over mandrel, Max. / Min. Bending radius can be made to order based on the customer request
Delivery Time 4-6 weeks after receiving a deposit.
Also bigger machines available please contact us for details.
