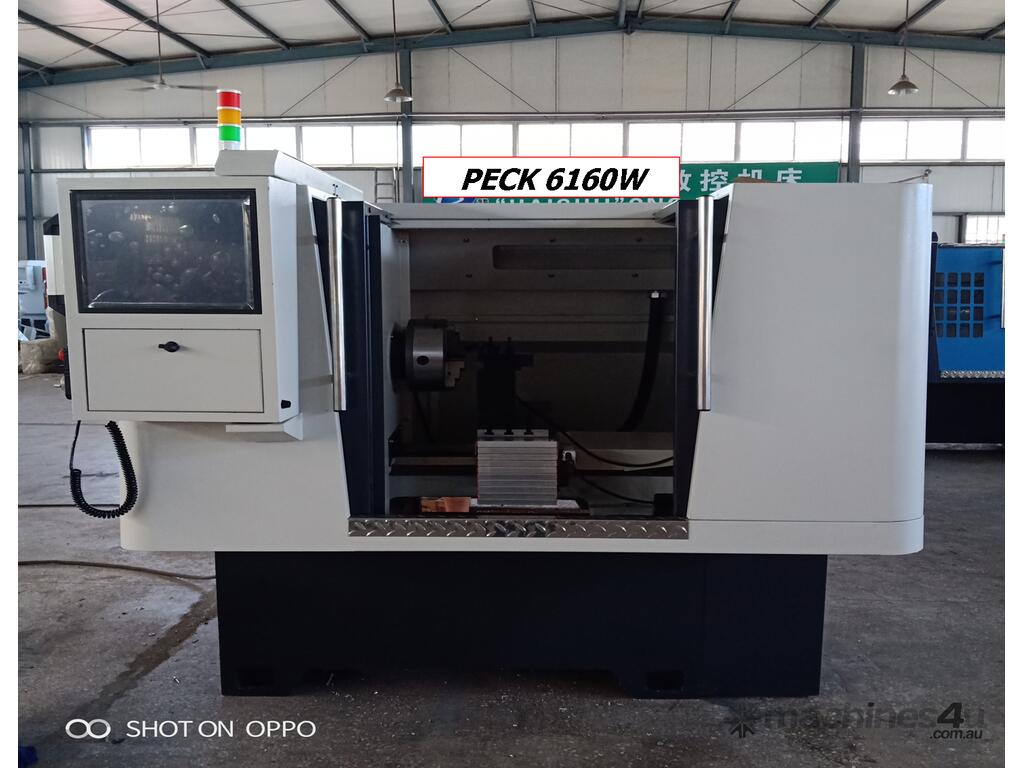

NEW PECK6160W CNC WHEEL LATHE WITH FULL PROTECTION (TOUCH OR LASER PROBE)

WEST GOSFORD, NSW

NEW PECK6160W CNC WHEEL LATHE WITH FULL PROTECTION (TOUCH OR LASER PROBE) :      $28,700 AUD ($31,570 Inc. GST)

  • Specifications
    Condition:
    New
    Year:
    2018
    Make:
    Panther
    Description

    1 set of PECK6160W CNC WHEEL LATHE WITH FULL PROTECTION TOUCH OR LASER PROBE


    Max. turning diameter mm 720
    Max. wheel machining diameter mm 24”
    Max. workpiece length mm 400
    Probe measuring direction X?Z
    Probe measure way Laser probe or touch probe
    Machining accuracy IT6~IT7
    Surface roughness um Ra0.8~1.6
    Main transmission form Independent spindle;
    frequency conversion stepless
    Range of spindle speed rpm 150~2500
    Main motor power kw 3
    Fast-moving feed mm/min X - axis:5000 Z - axis:8000
    Repeat positioning accuracy mm X - axis:0.01 Z - axis:0.015
    Turret form 3-position fixed tool holder
    Section of turning tool mm 25×25
    The size of the machine mm 2000×1500×1800
    (L×W×H)
    Net weight of the machine 1500Kg

    Cheap wheel repair CNC lathe.
    Achieve the wheel surface profile measurement and data collection and Program Optimization.
    Automatic precision repair and machining in accordance with the curve of the wheel surface.
    Self-developed curve optimization software. Multilingual language interface. Installation and operation is simple.
    Spindle frequency stepless speed.
    X / Z axis servo drive.
    With mandrel clamp wheel.
    Automatic oil lubrication
