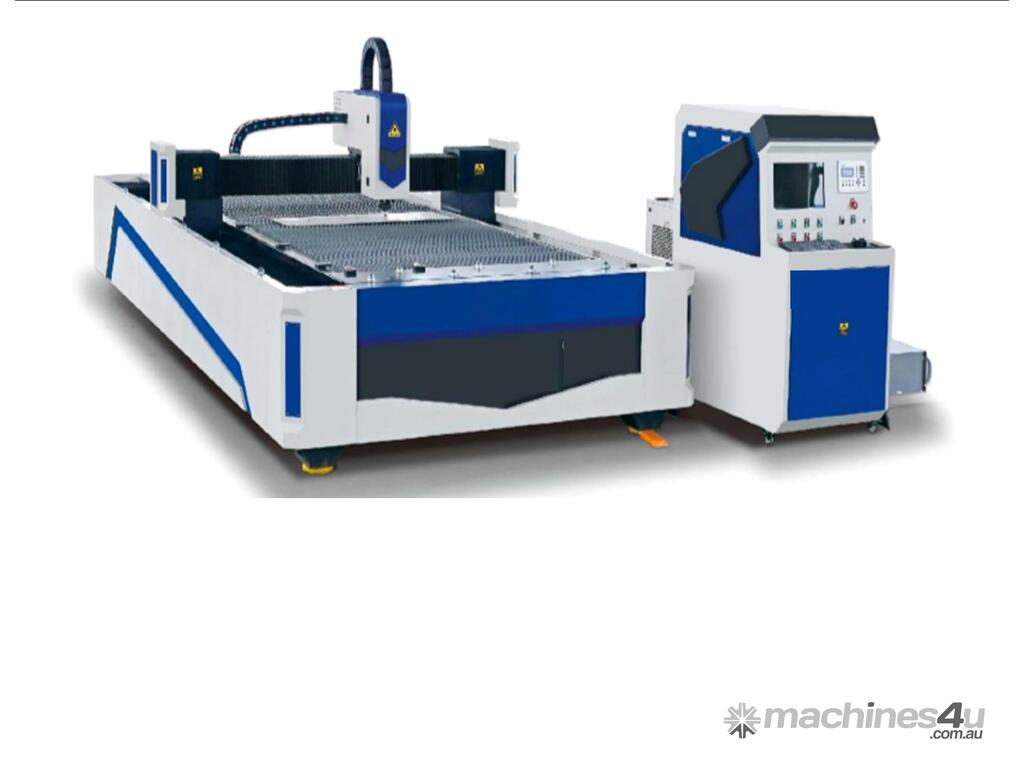

FIBER LASER CUTTING MACHINE PE1530 1500W

WEST GOSFORD, NSW

FIBER LASER CUTTING MACHINE PE1530 1500W :      $152,800 AUD ($168,080 Inc. GST)

  • Specifications
    Condition:
    New
    Type of Sale:
    Hot deals
    Year:
    2019
    Make:
    Panther
    Description

    1 set PE1530 OPEN TYPE FIBER LASER CUTTING MACHINE 1500W

    -The professional laser cutting machine CNC control system, the computer operation can guarantee the cutting quality, causes the cutting work to be more convenient, the operation is simple
    -The machine tool gantry style structure, casting bed and cross beam aluminium alloy can withstand higher speed and acceleration
    -The machine adopts imported AC servo system drive and imported transmission system. The machine tool movement mechanism adopts the imported gear & rack drive and the linear guide rail, so as to ensure the high speed, high precision and high reliability of the equipment.
    - The laser cutting head can bear the pressure of 2.0Mpa gas and the high-pressure gas path equipment improves the cutting ability of hard cutting materials such as stainless steel.


    Technical Parameter

    Type of laser: Fiber laser
    Laser wavelength: 1070nm
    Rated output power: 1500W
    Beam quality: <0.373mrad
    X axis stroke: 1500mm
    Y axis stroke: 3000mm
    Z axis strole: 120mm
    Effective cutting range: 1500x3000mm
    Axial orientation precision of worktable: ±0.03mm/m
    Repeatable positioning accuracy of worktable: ±0.03mm/m
    Maximum positioning speed: 120m/min
    Maximum load-bearing capacity of worktable: 1500KG
    Phase number: 3
    Rated voltage of power supply: 380V
    Current frequency: 50Hz
    Total power protection level: IP54
    Dimension: 3500x2900x1900mm
    Weight: 4500kg


    1 YEAR WARRANTY!


    Available in 500W, 750W, 1000W & 2000W. We also offer a 4000W 1530 Closed Type CNC Fiber laser machine.

    If you need more details, please don't hesitate to contact us.
