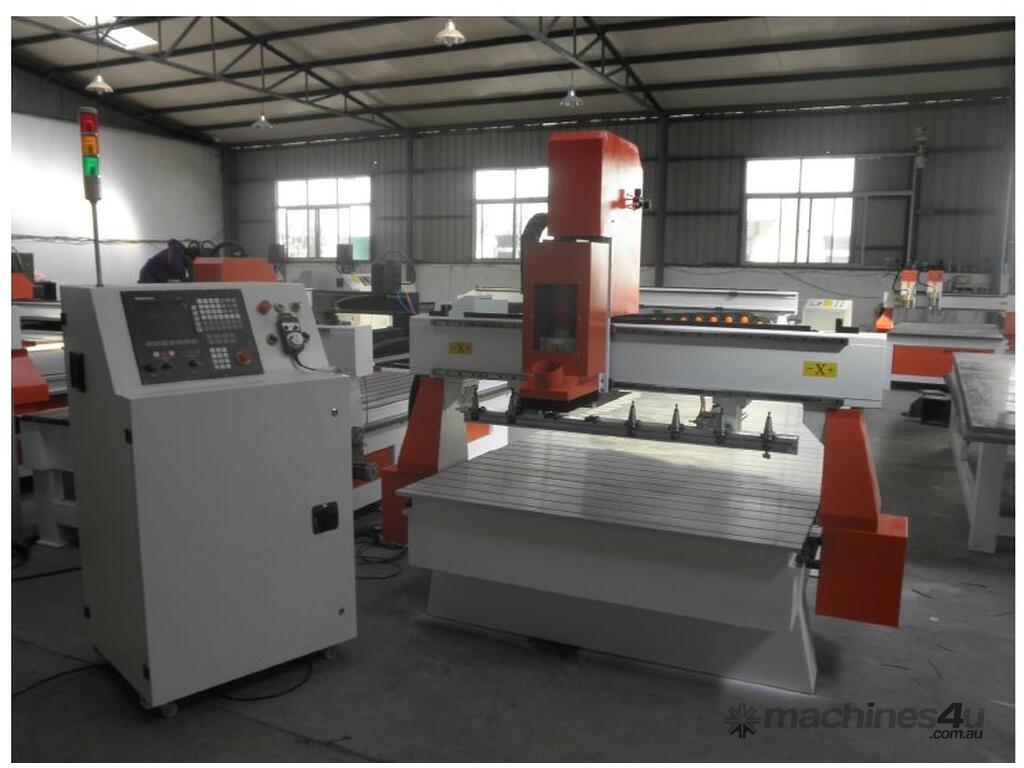

Panther 25-H CNC Router with auto tool changing

WEST GOSFORD, NSW

Panther 25-H CNC Router with auto tool changing :      $30,800 AUD ($33,880 Inc. GST)

  • Specifications
    Condition:
    New
    Type of Sale:
    Hot deals
    Year:
    2019
    Make:
    Panther
    Model:
    25-H
    Description

    Specifications:
    1. The machine can choose adopt Delta servo motor ,built-in encoder, It can stop automatically when graunch happens, so accidents can be avoided.
    2. Whole machine is welded with seamless steel structure, the regidity is good , not easy to be deformed. The side board of gantry adopt steel structure.
    3. All adopt imported square orbit, two line sliding track, heavy loading, stable working, high precision and long lifetime. Adopt imported ball screw, high precision.
    4. NK 200 control system: The embedded numerical control system based on windows platform can upgrade the functions infinitively. Anti-interference design of the hard and software synchronistically make sure of the reliable operation. Advance 3D space curve prediction algorithm can make sure of the evenness of polyline and the speed and precision of curve lines. Advanced file pre treatment function can correct the error in the files and is compatible with the process codes of multiple national and international software (such as Mastercam,Typ3,UG,Artcam,Caxa).

    Parameters:
    Working Area (X*Y*Z): 1300X2500X200mm (51X98.4X 7.8inch)
    Table structure: Common or by suction
    Processing accuracy: 0.05mm
    Repositioning accuracy: 0.02mm
    Spindle: 4.5 KW variable speed, water-cooled
    Spindle: rotating speed 0-24000rpm/min
    Max Moving Speed: 20000mm/min
    Working speed: 0-15000mm/min
    Driving mode: Z-Ball screw , XY-Rack drive
    Voltage: AC380(415)V/50Hz
    Max. Power consumption: 7.2KW
    Feeding Height: 200mm
    Drive motor: Servo(Delta)
    Command: G.code, mmg , plt , uoo,HPGL
    Compatible Software: Type3, Artcut, ArtCAM, masterCAM software
    Controlling software NC system ( with screen display )
    Certificate: CE,FDA
    Dimensions over all approximately: 2280mm x 3500mm x 2050
    Net Weight: 1500Kg
